Hunyuan World Voyager : Generate GTA like Games using AI
Hunyuan World Voyager for 3d world generation using AI
The world is moving fast after text generation, image generation, video generation. Now we have game generation using AI. Hunyuan World Voyager is here and it’s not just generating games; it is creating GTA out of nowhere.
HYWorld_Voyager, or Voyager for short, is a video diffusion model with a specific goal: take one image and a camera path, and grow that into a consistent RGB-D video sequence. From there, it can directly reconstruct an explorable 3D point cloud. No separate SfM (structure from motion) or MVS (multi-view stereo) pipeline.
Model Context Protocol: Advanced AI Agents for Beginners (Generative AI books)
What makes it different is not just that it generates pretty videos, but that it generates depth together with RGB, keeps geometry in check through explicit conditioning, and extends worlds in an auto-regressive way so you can explore scenes indefinitely.
What Voyager Does

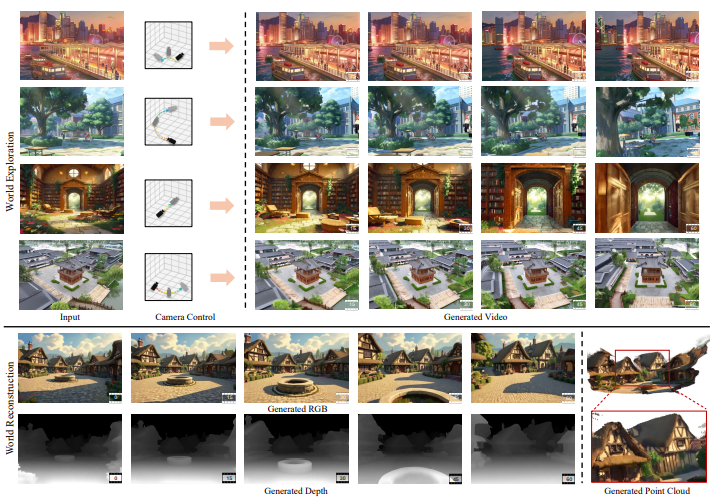

- Single image to 3D world: Input one image and a camera trajectory, output an RGB-D video sequence. Each frame comes with aligned depth, which can be projected into a 3D point cloud you can navigate.
- Infinite exploration: Scenes can be auto-regressively extended along long or even unbounded camera paths while maintaining geometric consistency.
- Direct 3D reconstruction: Outputs are ready for downstream 3D methods like Gaussian splatting without needing a separate geometry pipeline.
- Style and video transfer: Swap the appearance of a scene while preserving its geometry by holding depth fixed and changing RGB style.
Core Technical Pieces
1. Geometry-Injected Conditioning
Most video diffusion models only condition on RGB projections. Voyager instead projects both RGB and depth from an initial point cloud into target views. This improves occlusion handling and avoids hallucinations. The condition is partial RGB + partial depth, not just pixels.
2. Depth-Fused Video Diffusion

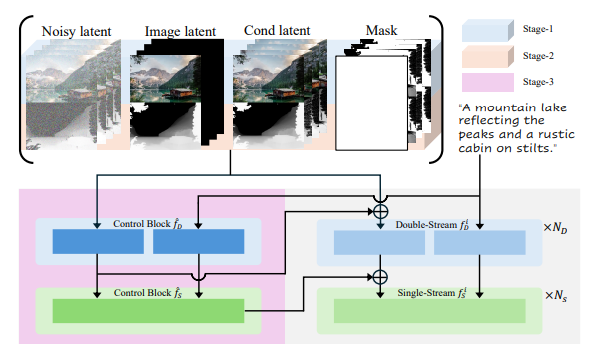

Voyager treats RGB and depth as a fused sequence. RGB and depth are concatenated along the height axis and fed into a DiT-style transformer. This way, the model learns to generate both modalities at once. Pixel-level cues from one help guide the other.
Inputs include noisy latents, the first image latent, partial RGB-D projections, and masks. Everything is embedded together and passed through the DiT.
3. Context-Based Control Blocks
Lightweight control modules (replicas of the early transformer blocks) inject geometry features directly into the diffusion process. They enforce alignment between RGB and depth and prevent drift. Think of it as a ControlNet wired into a video diffusion backbone.
4. World Cache + Point Culling
The model maintains a world cache: an accumulated point cloud across frames. This scales to long trajectories.
Point culling avoids waste by replacing points based on view angle: if the new view normal differs by more than 90°, keep the new one. Otherwise, discard. This simple rule trims storage by ~40% without hurting quality.
5. Smooth Video Sampling
Long videos are generated in overlapping segments. Overlaps are averaged and denoised to smooth transitions. Without this, seams and flickers appear between clips. The paper even provides pseudocode for their overlap sampling (Algorithm 2).
6. Scalable Video Data Engine
Training Voyager required >100k video clips with metric depth and camera poses. They built an automated pipeline:
VGGT estimates poses and depth.
MoGE refines depth.
Metric3D calibrates everything into metric scale.
The result is a large, consistent dataset mixing RealEstate10K, DL3DV, and Unreal Engine renders.
Architecture Summary
Backbone: DiT-like transformer with double-stream and single-stream blocks.
Conditioning: fused RGB+D, plus masks.
Control: geometry-injected control blocks similar to ControlNet.
Training: three stages — RGB-only, RGB+D, RGB+D with Control blocks.
Optimization is standard diffusion: LR 1e-5 → 1e-6 decay, random aspect ratios, random frame intervals.
Training Data
- RealEstate10K: ~75k clips.
- DL3DV: ~18k curated clips (fast shaky ones removed).
- Unreal Engine renders: ~10k synthetic samples.
Together: >100k clips.
Inference Flow (Practical Steps)
- Start with an RGB image.
- Estimate depth with MoGE.
- Build an initial world cache by unprojecting the image+depth.
- For each new camera view: project the cache into partial RGB-D and mask.
- Feed everything into diffusion (50 steps default).
- Update world cache with new points.
- For long paths, stitch segments using overlap sampling.
Resource note: inference is heavy. One segment takes ~4 minutes on 4 GPUs, ~60 GB peak memory.
Results
- Novel view synthesis (RealEstate10K): PSNR 18.751, SSIM 0.715, LPIPS 0.277, ahead of baselines like SEVA, ViewCrafter, See3D.
- 3D reconstruction (Gaussian Splatting): Voyager’s RGB-D outputs outperform baselines that require extra reconstruction.
- WorldScore benchmark: 77.62 average, top score compared to recent 3D/video methods.
Ablation shows why the design matters: RGB-only drops performance, depth + control blocks push it higher. Point culling cuts memory without hurting scores. Smooth sampling is critical for long sequences.
Limitations
- Resource demands: high GPU memory, not near real-time.
- Dataset bias: heavy tilt toward indoor/outdoor RealEstate and synthetic Unreal scenes.
- Artifacts: minor flickers or mismatches remain despite overlap sampling.
Getting Voyager
The paper points to HuggingFace and GitHub releases of HYWorld_Voyager. You’ll need the weights, code, and MoGE for input depth. For training, also grab VGGT and Metric3D for data labeling.
tencent/HunyuanWorld-Voyager · Hugging Face
That’s Voyager in practice: a system that doesn’t just generate videos but keeps RGB and depth consistent across frames and scales to infinite exploration.
